Description

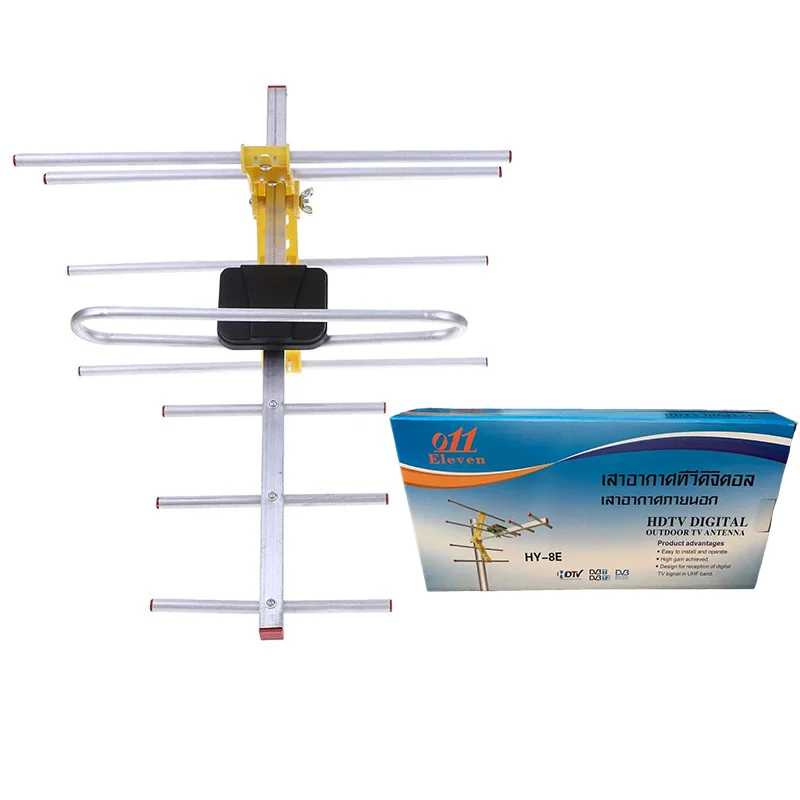

Outdoor Television Digital TV HD Signal Amplified Yagi Ground Wave Antenna UHF HDTV DVBT DVBT2 DTMB Antenna
1.With the design of the folding oscillator, five units and V reflectors, it has a strong directional and wide frequency band
2.The printing plate impedance matching device can effectively receive and transmit digital TV signals
3.It is convenient for users to install and use the cylindrical support rod in different diameter
4.The number of compatible dvb-t/H, dvb-t 2, DMB- T/H, isdb-t, atsc-t, ADTB- T, etc
TV format
Signal output interface: F female Connector
Technical parameters:
Signal receiving parameters:
Frequency range: 470-860（MHz）
Output impedance: 75 Ω
The standing wave ratio: ≤ 2.0
Ratio: ≥ 10 dB
Support bar diameter: Φ 30 mm ~ 45 mm
Interface form: F female Connector
Polarization mode: horizontal
Working temperature: – 40 ℃ ~ 70 ℃
Relative humidity: 5%~95%
Air pressure: 86kPa~106kPa
Physical parameters:
Product size: 420mm x 325 mm x 245 mm
There is 2-3% difference according to manual measurement.
Please check the measurement chart carefully before you buy the item.
Please note that slight color difference should be acceptable due to the light and screen.
What you get:
1 *HDTV Yagi Antenna
1*8M Cable
